MPX-206/SW
  • MPX-206/SW
  • MPX-206/SW

DJ Clubmixer

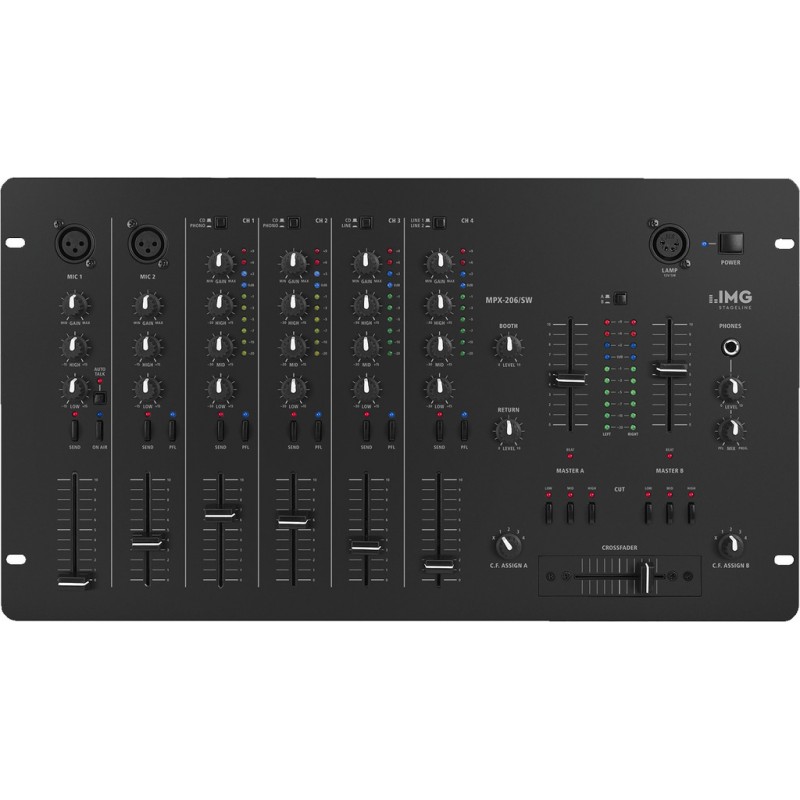

MPX-206/SW

202480
9 990 kr
Inkl. moms
Antal

Beskrivning

19” DJ mixer med många vettiga funktioner och lättöverskådlig layout. Utmärkt ljud- och byggkvalitet. Alla reglar och potentiometrar håller högsta klass, vilket borgar för lång och problemfri drift. Utrustad med fyra stereo-ingångar. MPX-206/SW har även en digital effekt-enhet som kan kopplas in på alla kanaler, vilket ger ytterligare möjligheter till unika mixar. Masterutgången är utrustad med 4-kanals equalizer samt gain- och balanskontroll. Ett mycket användbart DJ mixerbord som dessutom har balanserade utgångar. Passar till alla professionella applikationer.



Specifikationer

  • 4 stereo input channels, each with separate LED level display, switchable line/phono (channels 1-2) and line/line (channels 3-4), gain control, 3-way equalizer with cut function
  • 1 DJ microphone channel with switchable automatic talkover and 1 guest microphone channel, both channels with gain control as well as 2-way tone control
  • 1 stereo effect way (send/return)
  • 2 master outputs, each with beat LED and 1 booth output
  • 1 record output
  • LED level display, switchable between both master outputs
  • Crossfader with assignment switches for channels 1-4 and cut switch function to suppress high frequencies, midrange and bass frequencies
  • Adjustable headphone output
  • Fader start for the stereo inputs (channels 1-4)
  • Connection for gooseneck light GNL-404 or GNL-405
TEKNISK DATA:
No. of channels 6
No. of inputs 12
Mic input 1.5 mV, 2 x 6.3 mm jack
Line input 150 mV, 3 x RCA L/R
CD input 150 mV, 3 x RCA L/R
Phono input 3 mV, 2 x RCA L/R
Tape (play) -
Aux input -
Insert input -
Effect return 135 mV, 1 x RCA L/R
Master output 1 V/600 Ω, 1 x 3-pole XLR L/R
Record output 300 mV/600 Ω, 1 x RCA L/R
Monitor output 1 V/600 Ω, 1 x RCA L/R
Booth output -
Aux output -
Insert output -
Effect send 300 mV/600 Ω, 1 x RCA L/R
Control room -
Tape (rec) -
Headphones ? 8 Ω, 6.3 mm jack
Gooseneck lamp 12 V/5 W, 4-pole XLR
WiFi -
USB -
Bluetooth -
Frequency range 20-20,000 Hz
THD 0.05%
S/N ratio > 50 dB
Crosstalk -
Equalizer bass +15 dB, -30 dB/50 Hz
Equalizer midrange +15 dB, -30 dB/1 kHz
Equalizer treble +15 dB, -30 dB/10 kHz
equalizer -
Talkover -12 dB, switchable
Phantom power -
Crossfader yes
Media player -
Amplifier -
Power supply ∿ 230 V/50 Hz/14 VA
Mains voltage ∼ 230 V
Mains frequency 50 Hz
Power consumption, operation 14 VA
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 266 mm
Depth 110 mm
Rack spaces, RS 6
Weight 6.48 kg
