Beskrivning

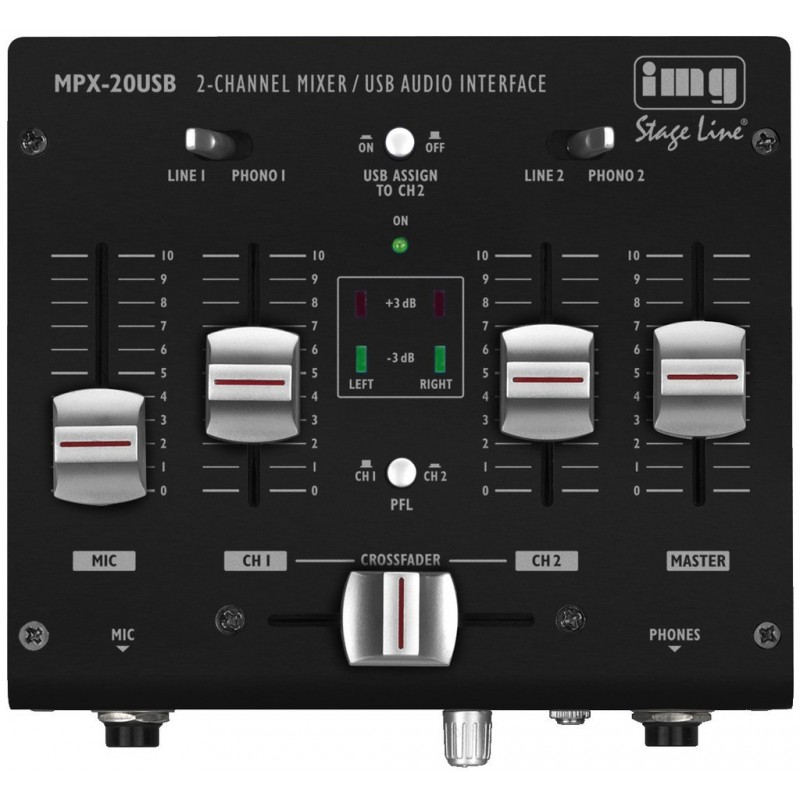

Ultrakompakt DJ mixer med full duplex USB-interface och massvis med smarta funktioner som gör detta till en otroligt kapabel liten rackare. Koppla till en PC och mixern behandlas som ett externt ljudkort. Missa inte specifikationerna nedan och manualen med utförligare information om allt som denna DJ mixer är kapabel till!
Tools4music
"Robust design, neat workmanship and great test results. The features of this unit certainly meet the requirements of practical applications."
Delamar.de
"The MPX-20USB from IMG Stage Line is a respectable mixer for two channels plus microphone which combines all the important features at a compact size. Great for DJs who concentrate on the essentials. Also suitable for anyone requiring a reliable second unit ... As a little bonus, there are in fact two headphone jacks. This space-saving mixer is able to crossfade two audio signals and well suited for home applications."
Specifikationer
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full duplex USB ports (allows for simultaneous recording and reproduction) for the reproduction of digital audio data from a PC as well as for recording mixings onto a PC
- 1 microphone input channel
- 2 stereo input channels, switchable line/phono and USB/line/phono
- 1 stereo output channel (master)
- 1 stereo record output
- Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
- Crossfader
- LED level display
- Robust metal housing of compact size
- Power supply via USB interface or optional PSU with USB port
| TEKNISK DATA: | |
| No. of channels | 4 |
| No. of inputs | 5 |
| Mic input | 1 mV, 1 x 6.3 mm jack |
| Line input | 450 mV, 2 x RCA L/R |
| CD input | - |
| Phono input | 9 mV, 2 x RCA L/R |
| Tape (play) | - |
| Aux input | - |
| Insert input | - |
| Effect return | - |
| Master output | 1 V, 1 x RCA L/R |
| Record output | 1 V, 1 x RCA L/R |
| Monitor output | - |
| Booth output | - |
| Aux output | - |
| Insert output | - |
| Effect send | - |
| Control room | - |
| Tape (rec) | - |
| Headphones | ? 8 Ω, 1 x 3.5 mm jack,
1 x 6.3 mm jack |
| Gooseneck lamp | - |
| WiFi | - |
| USB | yes |
| Bluetooth | - |
| Frequency range | 20-20,000 Hz |
| THD | 0.1% |
| S/N ratio | 63 dB, unweighted |
| Crosstalk | - |
| Equalizer bass | - |
| Equalizer midrange | - |
| Equalizer treble | - |
| equalizer | - |
| Talkover | - |
| Phantom power | - |
| Crossfader | yes |
| Media player | - |
| Amplifier | - |
| Power supply | DC 5 V/500 mA
via USB interface |
| Mains voltage | - |
| Mains frequency | - |
| Power consumption, operation | - |
| Operating voltage (possible alternative) | DC 5 V |
| Power supply (possible alternative) | DC 500 mA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 150 mm |
| Height | 70 mm |
| Depth | 140 mm |
| Rack spaces, RS | - |
| Weight | 700 g |
