NAC-3MPA1
  • NAC-3MPA1
  • NAC-3MPA1

Powercon strömkontakt 20A

NAC-3MPA1

348790
55 kr
Inkl. moms
Antal

Beskrivning

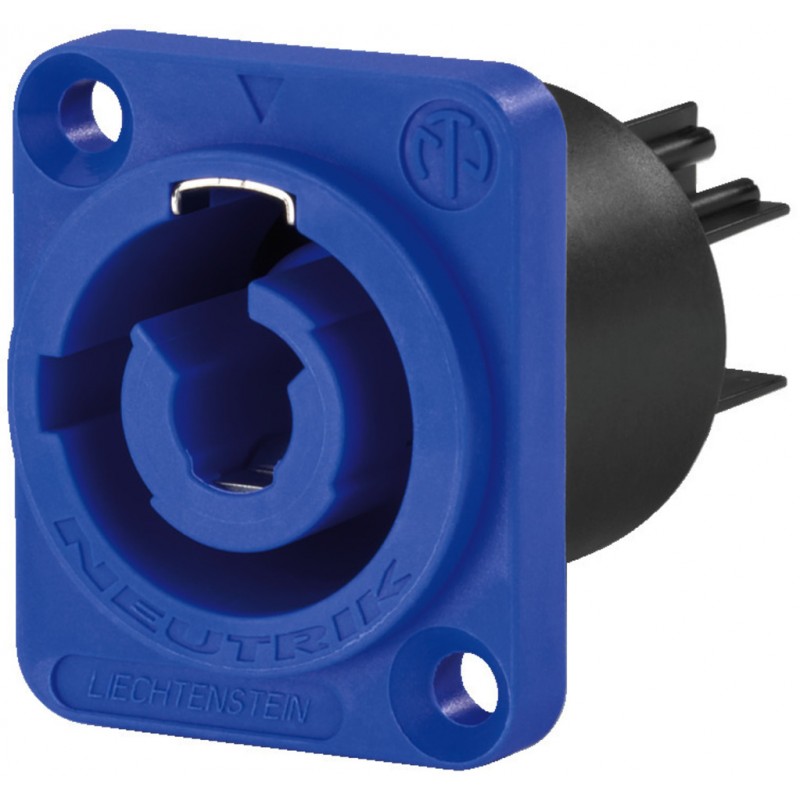

Neutrik Powercon strömkontakt för professionella applikationer. Klarar upp till 20 Ampere.



Specifikationer

  • For mains connection up to 250V/20A
  • 2 versions for the mains input and for the mains output
  • Connections for ground, phase and neutral conductor
  • Robust version with latching device, all-insulated contacts and cable inlet with self-adjusting clamps (plugs only)
  • Self-extinguishing acc. to UL 94V0
TEKNISK DATA:
Description panel jack
Type NEUTRIK POWERCON
Quantity 1
Features latching device Quick Lock
Colour/colour coding blue/black
Power rating ∿ 250 V/20 A
Insulating resistance > 100 MΩ
Dielectric strength DC 4 kV
Certification UL, cUL, VDE, Electroswiss
Pole number 2+PE
Cable inlet -
Suitable cable cross section -
Connection blade terminals, 4-8 mm
Strain relief -
Cable bending protection -
Stereo -
Mono -
Switches -
Material silver-plated bronze contacts, plastic
Central fixing -
Contact type -
No. of contacts -
Contact width -
Contact distance -
Admiss. ambient temp. -30-+80 °C
Dimensions 26 x 31 x 37.2 mm
Diameter -
Length 37.2 mm
Weight 12 g
Other features -
